Description
Product Description
� Space-saving 800mm total unit depth
� 333mm wok ring suitable for standard-sized woks
� Chimney burners ideal for high heat/fast stir-frying
� Uses up to 90% less water than Traditional Woks
� Air gap design eliminates need for water cooling
� Machine pressed deck to prevent grime catchment
� Concealed ring lip prevents water from entering air gap
� Removable, vented rear condiment shelf
� Modular design to suit multiple WZ wok units
� Optional Duckbill and Dual Ring Burners no additional cost
� 24 months �Platinum Warranty�
� Easy to clean and service

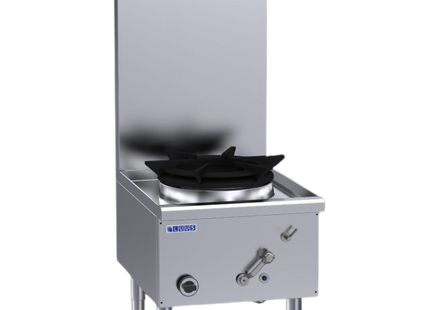

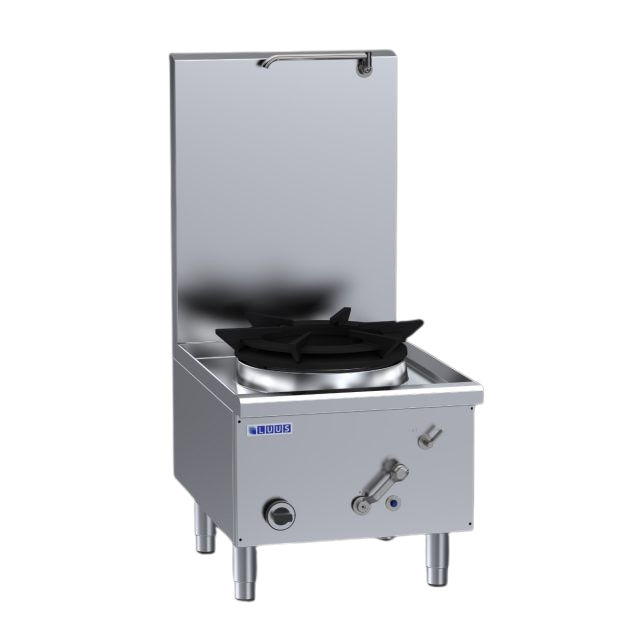

Waterless Wok
� 110 mj 24 jet chimney burners with pilot & FFD
� 333mm diameter standard size cast-iron wok ring
� Air gap cooling system
� Quarter turn water control lever
� Folding rear laundry arm with front panel controls
� Wider front gutter design for easier cleaning
� Internal front heat shield panel
� Supplied with waste strainer
� Zinc-aluminium Alloy burner handles
Overall Construction
� Heavy duty construction
� Full skirt, enamelled cast-iron rings
� 1.5mm 304 stainless steel one-piece pressed deck
� 0.9mm 304 stainless steel condiment shelf
� Splashback and front cover 1.2 mm 304 stainless steel
� Integrated hob 1.5mm 304 stainless steel
� Side panels 1.2mm 304 stainless steel
� Undertrays 0.9mm stainless steel
� Stainless steel removable legs
� 30mm height adjustment range
Dimensions
� 600mm x 800mm x 1300mm H
� Working height 800mm
� Weight 85kg
� Packed dimensions 650mm x 900mm x 1470mm H
� Packed weight 110kg
Connections
� Gas 3/4� BSP female
� Gas 121mm from right, 84mm from rear, 425m to floor
� Supplied with gas regulator (specify Nat or LP on order)
� Water inlet 1/2� copper tube
� Water 61mm from right, 81mm to rear, 408mm to floor
� Drain 1 3/4� BSP male, drain outlet 2�
� Drain 122mm from left, 83mm from rear, 590mm to floor
Cleaning & Servicing
� Easy access to all parts & components from front
